FRP Cable Trays – Types, Purpose, Advantages, Disadvantages

FRP Cable Tray Manufacturer

Alternatives to wire routes and electrical conduits that entirely encapsulate wires are cable tray systems.

Cable trays can accommodate many forms of wire, including:

  • Power lines with high voltage.
  • Cables for Power Distribution
  • Control wires
  • Telecommunications wires
  • Optical Fiber Cables

Purpose of FRP Cable Trays

Cable trays are parts of support systems for interconnected transmission cables and wires.

A cable tray system accommodates and protects both energy and data cables, making it easier to upgrade, expand, reconfigure, or relocate networks.

FRP cable tray supplier says that most cable tray designs are open, allowing for effective heat dissipation and easy replacement and maintenance. Although most cable tray systems are suspended from the ceiling or attached to the walls, others are suited for use on the floor.

Types of Cable Trays

  • Ladder-type
  • Solid bottom type
  • Perforated type
  • Channel type
  • Wire mesh

Typically, an engineer or designer will define the type of cable tray with the features required for the project. It is determined by the circumstance and the surrounding.

FRP Cable Trays Supplier

The number of cables, length, spacing, and weight of the cables in the tray all influence the choice of cable tray.

Ladder-Type Cable Tray

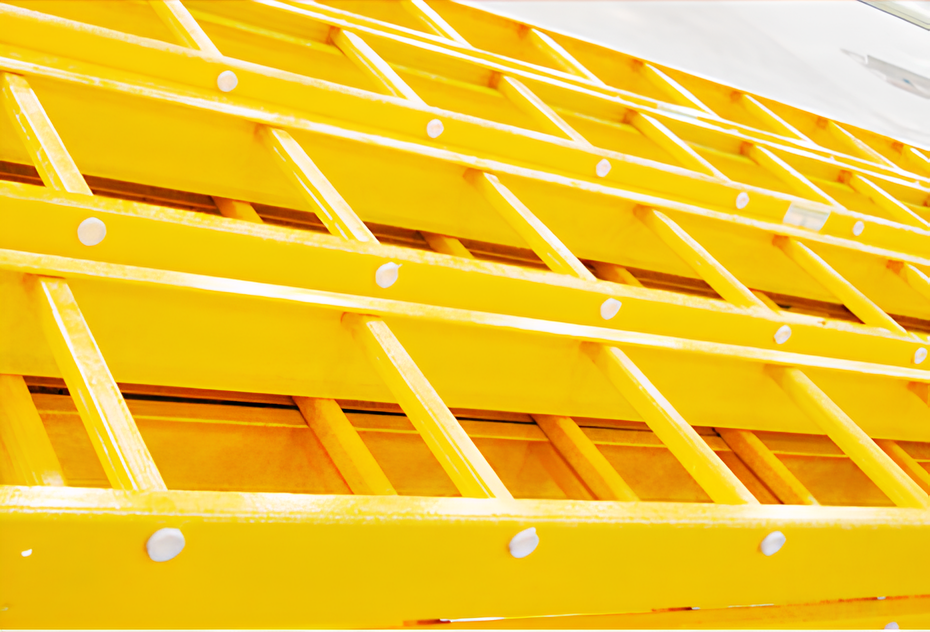

The Ladder Cable tray is made up of two side rails that are joined by rungs. The ladder rungs on this sort of cable tray provide simple access to the cables from the top or bottom.

The rungs of the ladder cable trays serve as suitable anchors for tying down cables in non-horizontal cable tray runs or when cable placements in horizontal cable tray runs must be preserved.

Solid Bottom Type Cable Tray

Solid-bottom (non-ventilated) cable trays are preferable for fiber-optic cable installs where drooping cables may impact system performance.

The major rationale for using solid-bottom trays is to defend against electromagnetic/radio-frequency interference.

Perforated Cable Tray

Cable holder with perforations It has a ventilated bottom and side rails. It offers better cable support than ladder-style cable trays.

Channel Type Cable Tray

A channel cable tray is just a metal tray that may be used for extremely modest cable installations.

Wire Mesh Cable Tray

Wire mesh cable tray, also known as basket cable tray, is a type of cable tray constructed of stainless steel wires that are welded together to form a basket-like mesh.

Cable Trays are primarily used to support low voltage, telecommunication, and fibre optic cables over short distances.

Materials

  1. Metallurgical
    • Aluminum has a high strength-to-weight ratio and is resistant to corrosion. Aluminum is the most widely utilized metal due to its low weight.
    • Steel provides electrical shielding and has a low thermal expansion.
    • Stainless steel has excellent corrosion resistance and can endure high temperatures.
  2. Non-Metallic
    • Fiberglass is non-conductive, corrosion-resistant, and lightweight.

Precautions:

  • The most significant consideration is to keep the bend radius of the fiber-optic or coaxial wire within the requirements.
  • If the trays are not examined and maintained clean on a regular basis, combustible dust and debris might collect.

Advantages of Cables Types

Less costly: One of the major benefits of employing a cable tray is that the FRP cable tray price is far less expensive than other types of shielding wiring on the manufacturing floor.

Maintenance: Cables are immediately visible for routine maintenance, and replacing cables is simple because cables can enter or leave the tray at any point in the network.

Disadvantages of Cable Types

Regular cleaning is essential for safety, as cable trays are frequently positioned in difficult-to-reach spots.

There is a downside to the solid bottom cable tray arrangement. Moisture can accumulate in the cable trays as a result.

FRP Cable Tray Price

Why Choose Fibrograts FRP Cable Tray?

  • CORROSION RESISTANT – It provides resistance to practically all chemicals in the harshest situations.
  • LIGHTWEIGHT – The density of aluminum is four times that of steel.
  • IMPACT RESISTANCE – Returns to the original position without deflection or distortion.
  • NON-CONDUCTIVE – It does not conduct electricity.
  • DIMENSIONAL STABILITY – Pultruded items have a lower coefficient of thermal expansion than aluminum and steel.
  • MAINTENANCE-FREE – There is no need for rework such as painting or cleaning.
  • LIFE CYCLE – Long durability guarantees the lowest life cycle cost.
  • EASY TO INSTALL – There is no welding required, and it is simple to cut and drill.
  • UV RESISTANT – Built-in UV resistance protects against direct sunlight exposure.
  • LOW INSTALLATION COST – Due to its modest weight, it is simply installed by anybody.

Application of FRP Cable Trays

Industrial Marine Mining
Chemical Oil & Gas EMI / RFI Testing
Pollution Control Power Plants Pulp & Paper
Offshore Recreation Building Construction
Metal Finishing Water / Wastewater Transportation
Plating Electrical Radar

Fibrograts FRP Cable Trays

Fiberograts is an FRP cable tray manufacturer/supplier that offers a comprehensive range of FRP Cable Trays, supplied in various sizes. These cable trays are produced using an Automated Pultrusion Process, which provides constant high quality. FRP Cable Tray is exceptionally robust and resistant to chemical attacks of all types. FRP Cable Trays may be utilized in the world’s most corrosive and architecturally demanding situations, such as offshore installations, chemical industries, oil and metal mills, water treatment facilities, and many other sectors.
